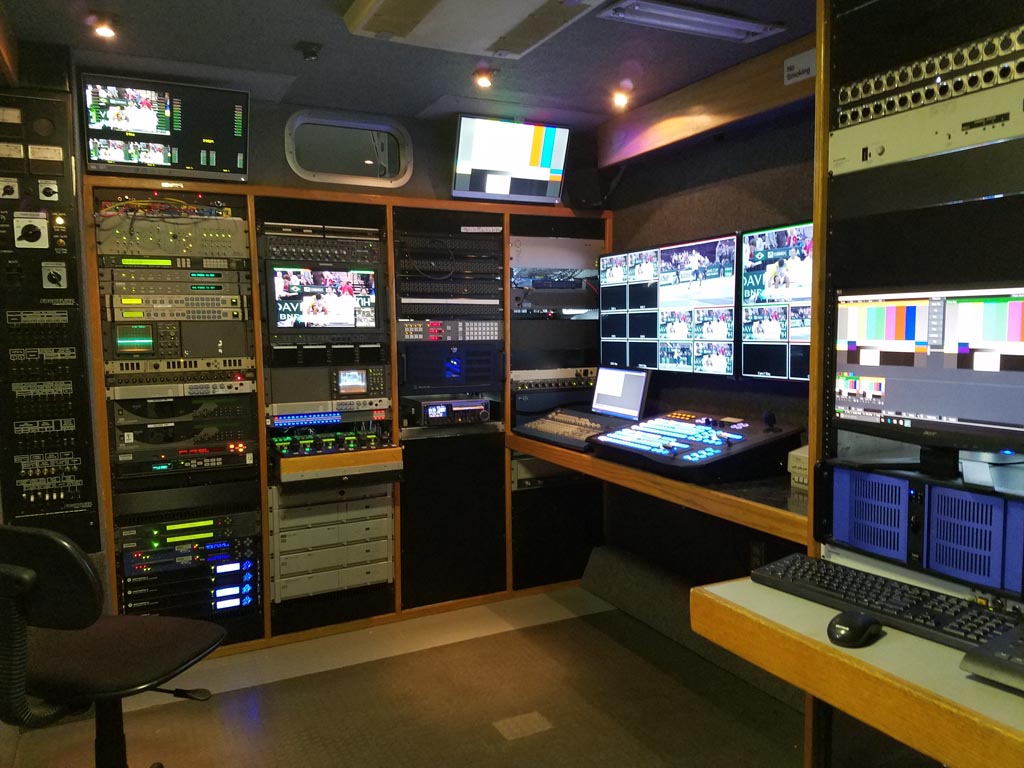

Unit K116 is an enhanced and upgraded Frontline Super 7 hybrid uplink/production vehicle with layout for up to 9 workstations.

Body and Electrical:
Frontline 28' Super 7 shelter on a Ford 8000CF chassis
Kohler 20kW commercial mobile generator
Power conditioning and distribution, including up to 150' primary cable
Power requirements: 100A single phase 208V or 240V
3x 13500 BTU RV air conditioning units.

Uplink:
Andrew 2.4m LTE dual port antenna
2x Xicom spar mounted 450W outdoor TWTs
Xicom remote control
2x Miteq U9696 Ku-band upconverters
2x RTM DVB-S2 modulators with BISS encryption
2x Ericssion AVP 2000 MPEG4/MPEG2 HD/SD encoders
Ericsson RX8200 IRD
Sencore MDR3187A IRD
2x Adtec DTA 50 Mux
4x Motorola 5100 MPEG4 encoders
Tektronix 1705A spectrum monitor

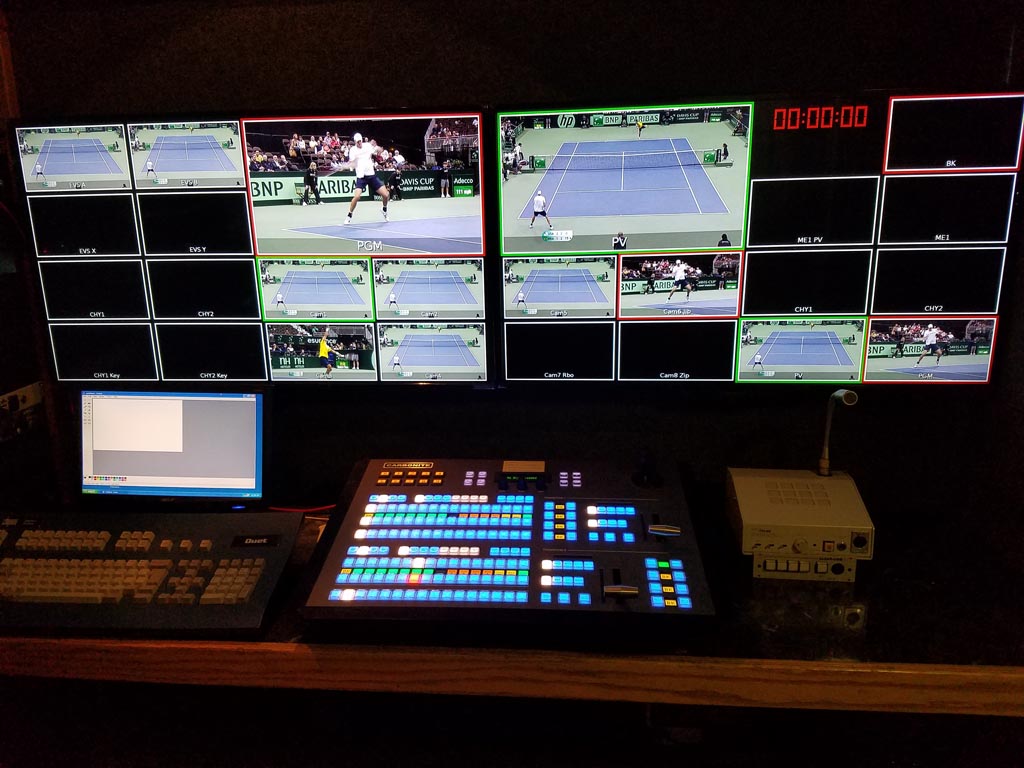

Production Video:
Ross Carbonite  24 Switcher with 24fsfc 2.5ME
Snell  32x32 HD-SDI router

Record, Playout and Replay:
2x Sony PDW-70 XDCam recorders
2x Panasonic AJ-HD1400 DVCPro HD recorders
NewTek 3Play slo-mo replay
vMix 4 channel HD slo-mo replay with Contour Design controller
2x Avermedia HD MPEG4 SSD recorders
2x BMD Hyperdeck recorders

Graphics:
Chyron Duet HyperX 2-channel CG with Lyric 7.6
HD-SDI playout computer with CasparCG

Terminal Gear and Technical Monitoring:
Tektronix WFV 5000 HD waveform monitor
Ikegami HLM 1700R HD Color monitor
Marshall V-rp44p 4x4 color monitors
Wohler audio monitor
Dektec FantASI DTU-225 mpeg stream analyzer
.

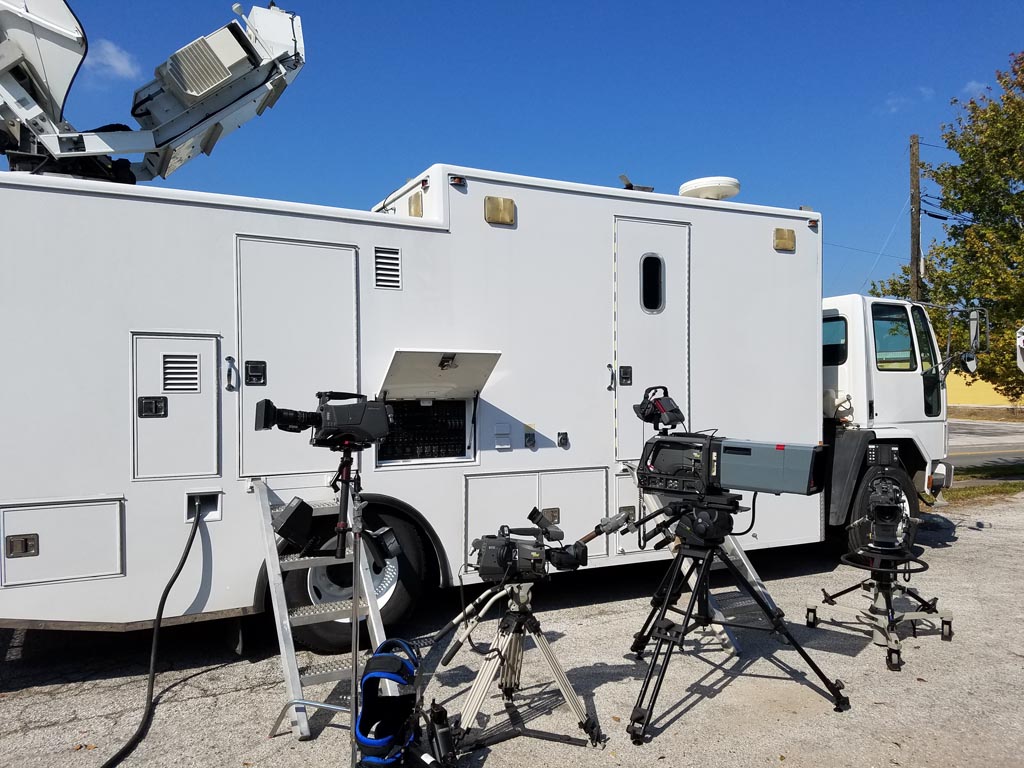

Cameras and control:
5x GVG LDK 6000 Elite Triax camera chains with Super Extender CCUs and remotes
Lens options from 6mm wide angle to 70x HD.
Vinten tripods and pedestals

Audio:
Yamaha TF3 24x16 digital mixer
Leitch 16x16 audio router
Vikinx 8x8 audio router
5x96 TT patch bays
2x BMD de-embedders
2x Apogee Rosetta 800 ADC/DAC
Crown D75 monitor amplifier
JBL Control 1 monitors
JBL Control mini director's monitors
Assorted microphones including parabolics, lav, wireless, handheld, shotgun

Comm:
Clearcomm PIC4000 4-channel production IFB
2x Clearcomm MA-4 director's station
4x Gentner Clear One phone hybrids
4x RTS 325 4-channel PL user stations
3x RTS 327 2-channel PL user stations
8x RTS BP325 beltpacks
Single and dual muff headsets
RTS PS31 power supply
4x Clearcom AB100 announcer consoles
4x Sennheiser HMD25 boomsets

Cabling:
150' primary cable
4000' Triax
1000' DT-12
